Transforms

Transforms can be applied to two and three dimensional csg tree Items.

class pcsg.transform.Transform

Informational base class of Transform objects. This empty class is implemented for type matching purposes.

dimensions

The number of dimensions is determined from the child instance.

Translate

Transform solid on x-axis

Transform solid on x- and y-axis

Transform solid by vector

Transform shape by vector

Example: Transform solid on x-axis

import pcsg

body = pcsg.solid.Sphere (radius = 1)

item = pcsg.transform.Translate (body, y = 2)

Example: Transform solid on x- and y-axis

import pcsg

body = pcsg.solid.Sphere (radius = 1)

item = pcsg.transform.Translate (body, x = 1, y = 2)

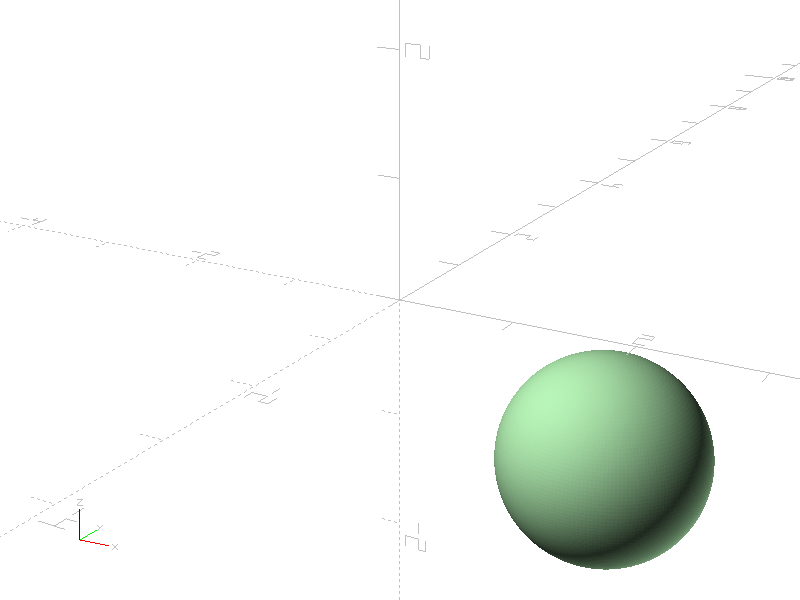

Example: Transform solid by vector

import pcsg

body = pcsg.solid.Sphere (radius = 1)

item = pcsg.transform.Translate (body, (1, 2, -2))

Example: Transform shape by vector

import pcsg

body = pcsg.shape.Circle (radius = 0.5)

item = pcsg.transform.Translate (body, (0.5, 1))

class pcsg.transform.Translate(children: Optional[object] = None, vector: Optional[tuple] = None, x: Optional[float] = None, y: Optional[float] = None, z: Optional[float] = None, name: Optional[str] = None, attributes: Optional[pcsg.attributes.Attributes] = None)

Bases: pcsg.tree.Node, pcsg.transform.Transform

Translates a Shape or Solid.

A translation can be constructed by a vector of the parameters x, y, and z.

When translating Shapes only the x and y parameters must be used, z must be 0 (default value).

children

Tuple containing a single Shape or Solid.

x

Translation in direction of the x-axis.

y

Translation in direction of the y-axis.

z

Translation in direction of the z-axis.

Scale

Scale solid on x-axis

Scale solid on x- and y-axis

Scale solid by vector

Scale shape by vector

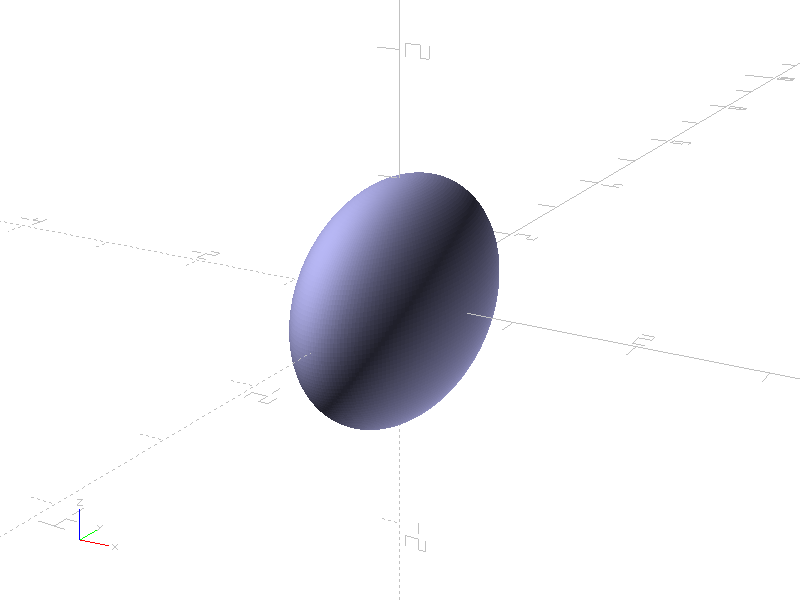

Example: Scale solid on x-axis

import pcsg

body = pcsg.solid.Sphere (radius = 1)

item = pcsg.transform.Scale (body, sy = 2)

Example: Scale solid on x- and y-axis

import pcsg

body = pcsg.solid.Sphere (radius = 1)

item = pcsg.transform.Scale (body, sx = 0.6, sy = 1.3)

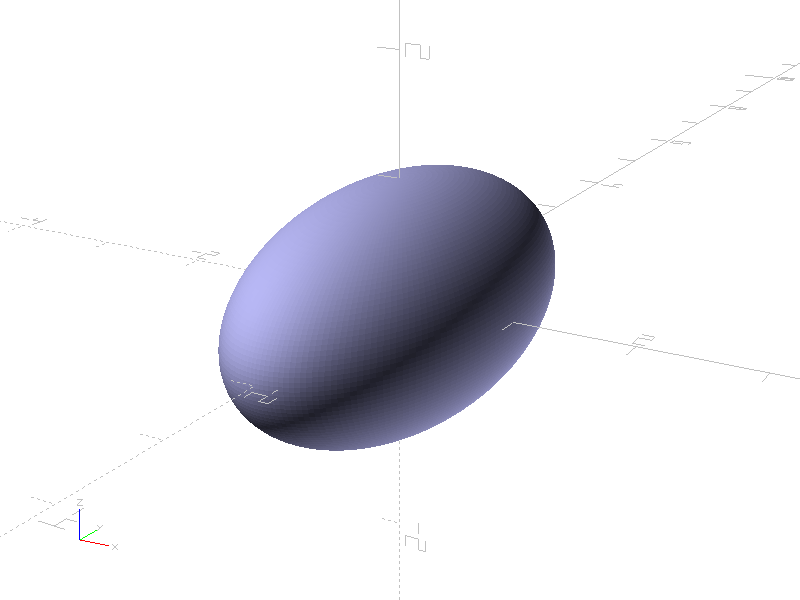

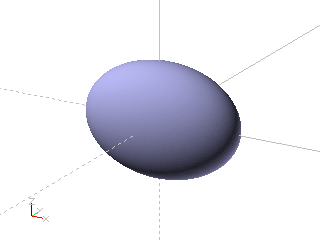

Example: Scale solid by vector

import pcsg

body = pcsg.solid.Sphere (radius = 1)

item = pcsg.transform.Scale (body, (1.7, 0.9, 1.2))

Example: Scale shape by vector

import pcsg

body = pcsg.shape.Circle (radius = 0.5)

item = pcsg.transform.Scale (body, (0.5, 1))

class pcsg.transform.Scale(children: Optional[object] = None, vector: Optional[tuple] = None, sx: Optional[float] = None, sy: Optional[float] = None, sz: Optional[float] = None, name: Optional[str] = None, attributes: Optional[pcsg.attributes.Attributes] = None)

Bases: pcsg.tree.Node, pcsg.transform.Transform

Scales a Shape or Solid.

A scale can be constructed by a vector of the parameters sx, sy, and sz.

When scaling Shapes only the sx and sy parameters must be used, sz must be 1 (default value).

children

Tuple containing a single Shape or Solid.

sx

Scale in direction of the x-axis.

sy

Scale in direction of the y-axis.

sz

Scale in direction of the z-axis.

Rotate

Rotate solid around x-axis

Rotate solid around x- and y-axis

Rotate solid around vector

Rotate shape around z-axis

Example: Rotate solid around x-axis

import pcsg

body = pcsg.solid.Cube (size = 1)

item = pcsg.transform.Rotate (body, rx = 25)

Example: Rotate solid around x- and y-axis

import pcsg

body = pcsg.solid.Cube (size = 1)

item = pcsg.transform.Rotate (body, rx = 25, ry = 15)

Example: Rotate solid around vector

import pcsg

body = pcsg.solid.Cube (size = 1)

item = pcsg.transform.Rotate (body, (10, 20, 35))

Example: Rotate shape around z-axis

import pcsg

body = pcsg.transform.Translate (
    pcsg.shape.Square (size = 0.5),
    x = 1
)

item = pcsg.transform.Rotate (body, rz = 30)

class pcsg.transform.Rotate(children: Optional[object] = None, vector: Optional[tuple] = None, rx: Optional[float] = None, ry: Optional[float] = None, rz: Optional[float] = None, name: Optional[str] = None, attributes: Optional[pcsg.attributes.Attributes] = None)

Bases: pcsg.tree.Node, pcsg.transform.Transform

Rotates a Shape or Solid.

A rotation can be constructed by a vector of the parameters rx, ry, and rz. The rotation applies the 3 angles by rotating around the z axis, followed by a rotation around the y axis, finally a rotation around the x axis will be applied.

When rotating Shapes only the rz parameter is allowed to use, rx and ry must be 0 (default value).

children

Tuple containing a single Shape or Solid.

rx

Rotation around the x-axis in degrees.

ry

Rotation around the y-axis in degrees.

rz

Rotation around the z-axis in degrees.
